Buick Regal 2011 wiring diagrams

: Parent Category: Wiring Diagrams; Category: General Motors

Body control (1)

Body control (2)

Body control (3)

Body control (4)

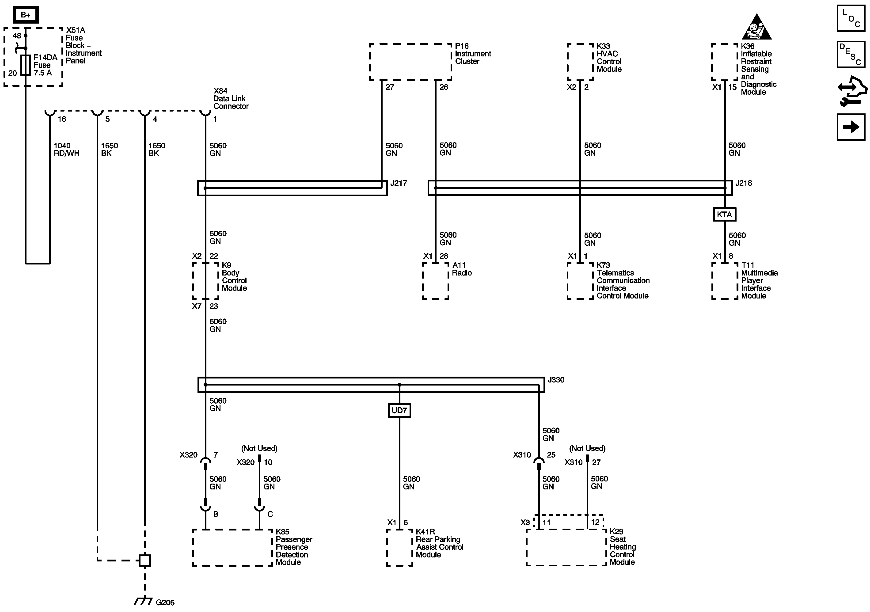

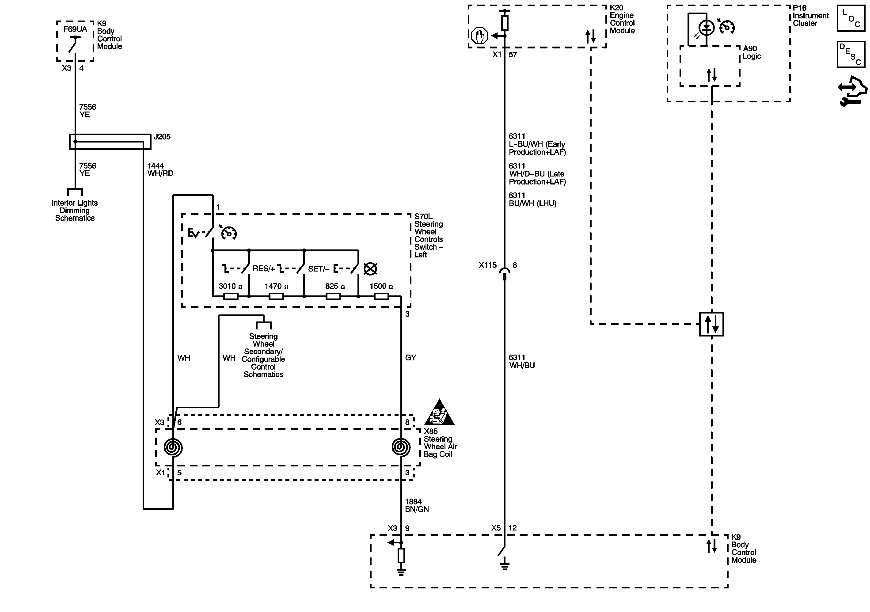

Data communication (1)

Engine controls (1)

Engine controls (10)

Engine controls (11)

Engine controls (12)

Engine controls (13)

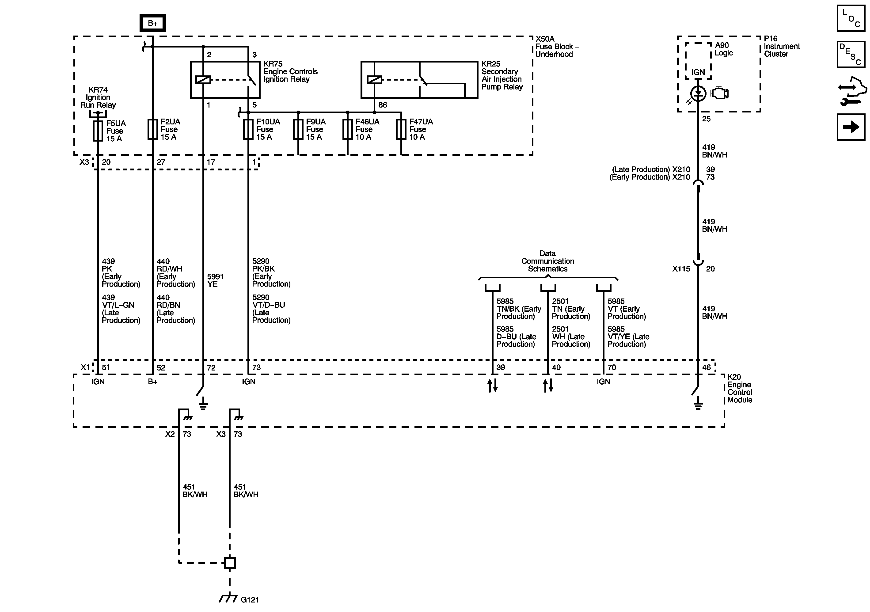

Engine controls (2)

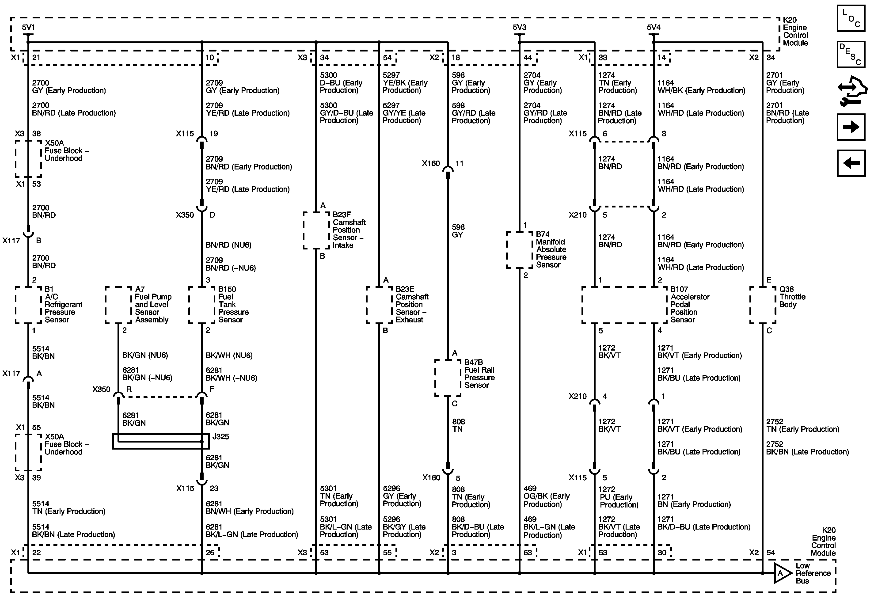

Engine controls (3)

Engine controls (4)

Engine controls (5)

Engine controls (6)

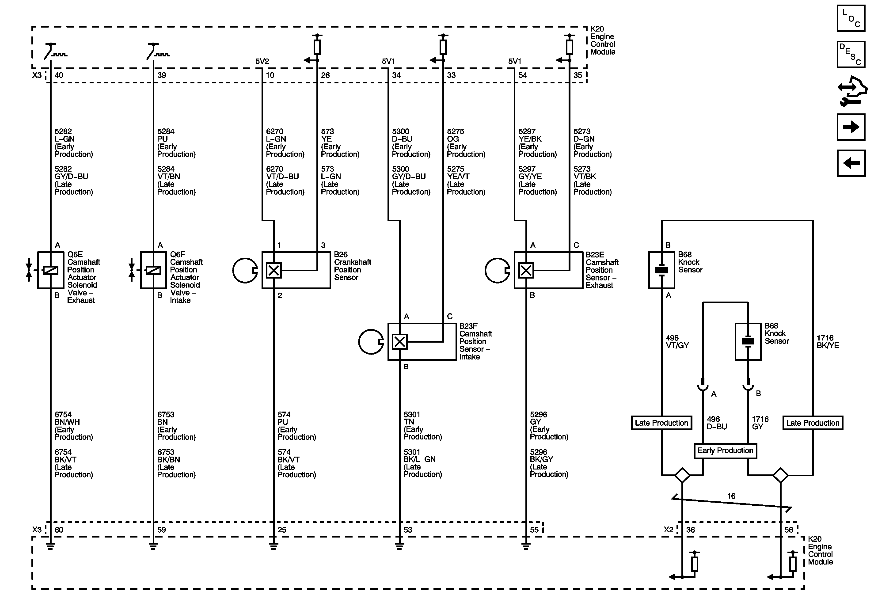

Engine controls (7)

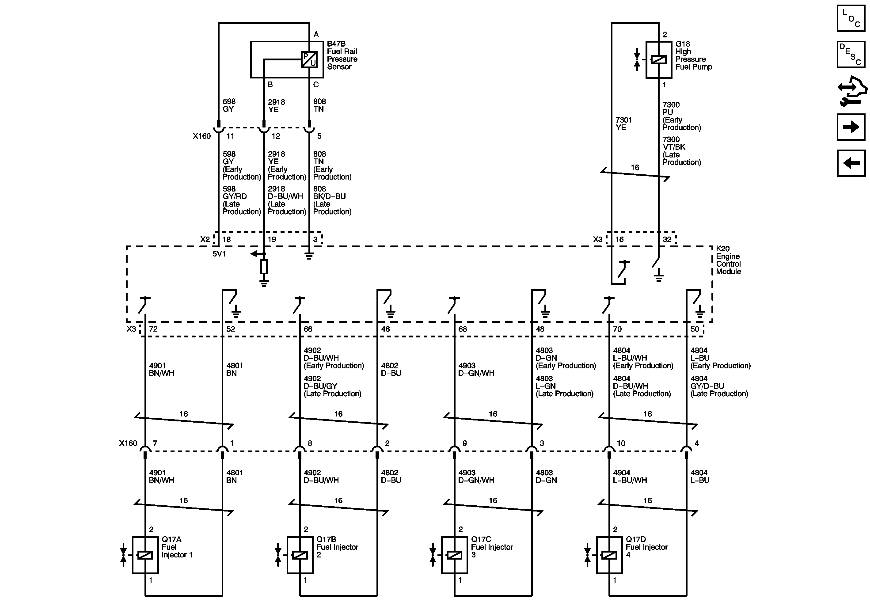

Engine controls (8)

Engine controls (9)

Engine controls 20L (1)

Engine controls 20L (10)

Engine controls 20L (11)

Engine controls 20L (12)

Engine controls 20L (2)

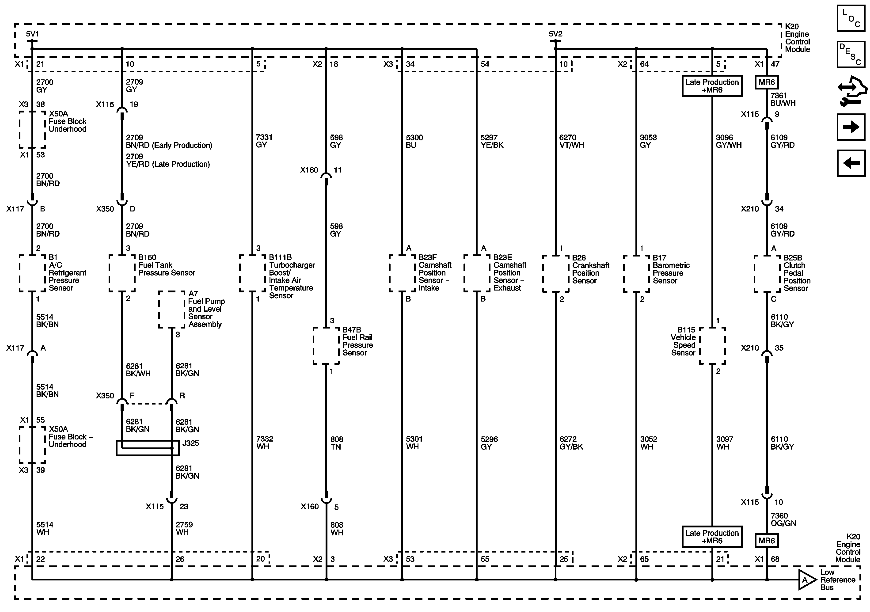

Engine controls 20L (3)

Engine controls 20L (4)

Engine controls 20L (5)

Engine controls 20L (6)

Engine controls 20L (7)

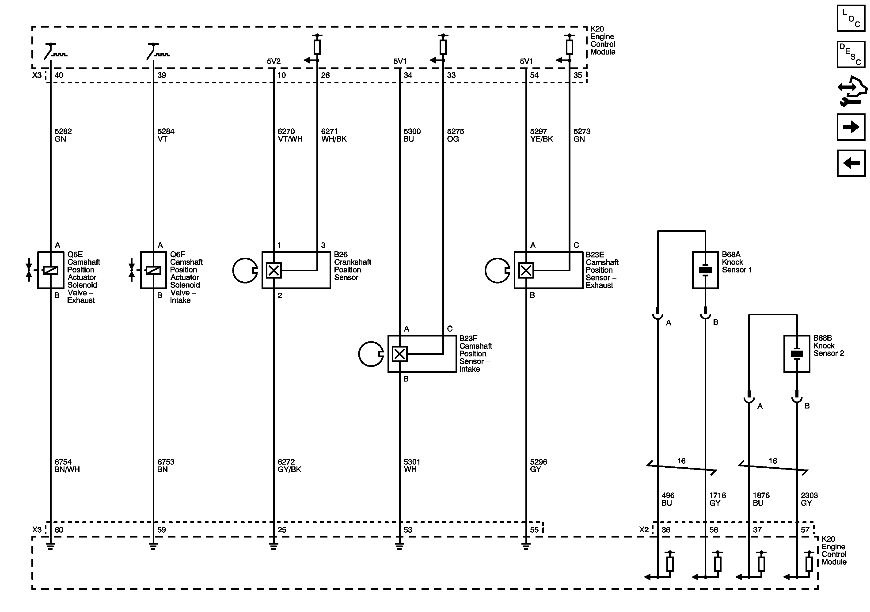

Engine controls 20L (8)

Engine controls 20L (9)

Ground distribution (1)

Ground distribution (10)

Ground distribution (11)

Ground distribution (12)

Ground distribution (13)

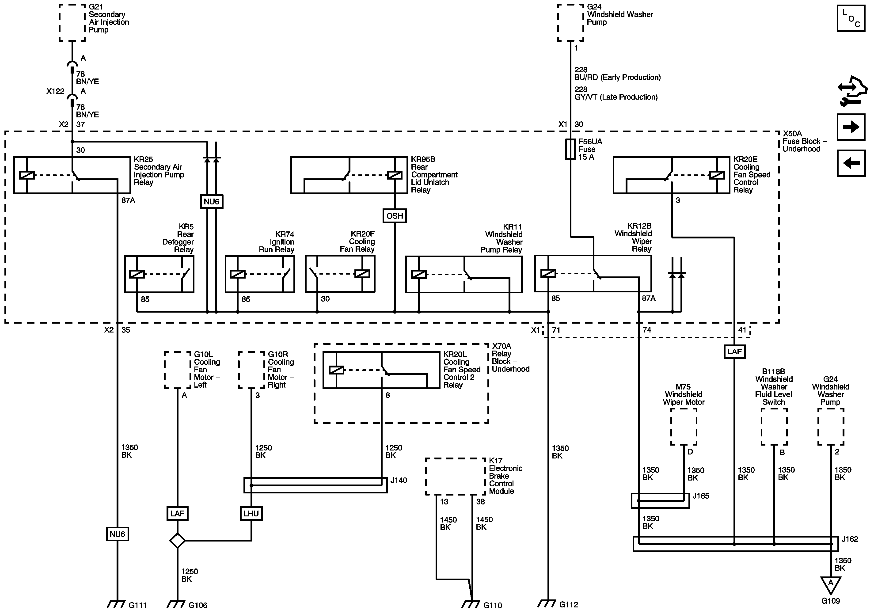

Ground distribution (2)

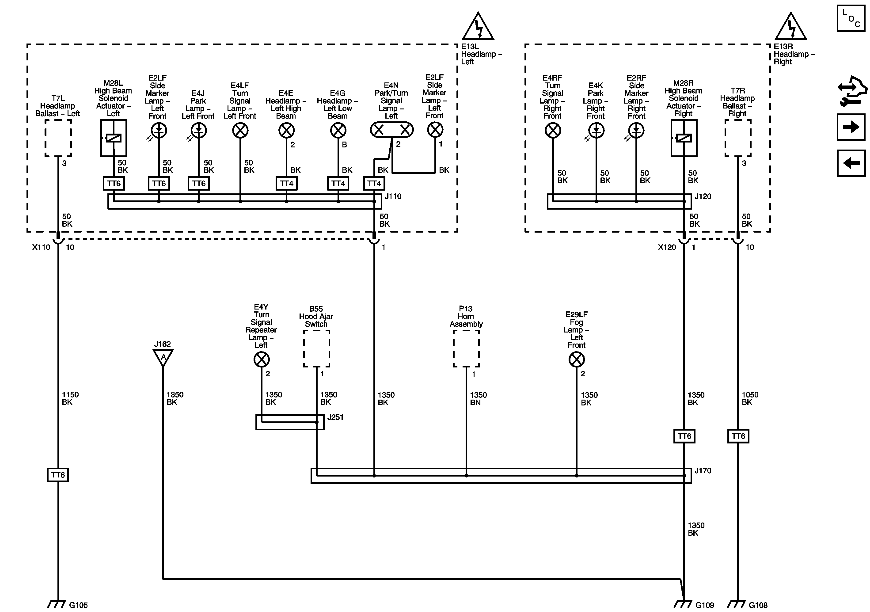

Ground distribution (3)

Ground distribution (4)

Ground distribution (5)

Ground distribution (6)

Ground distribution (7)

Ground distribution (8)

Ground distribution (9)

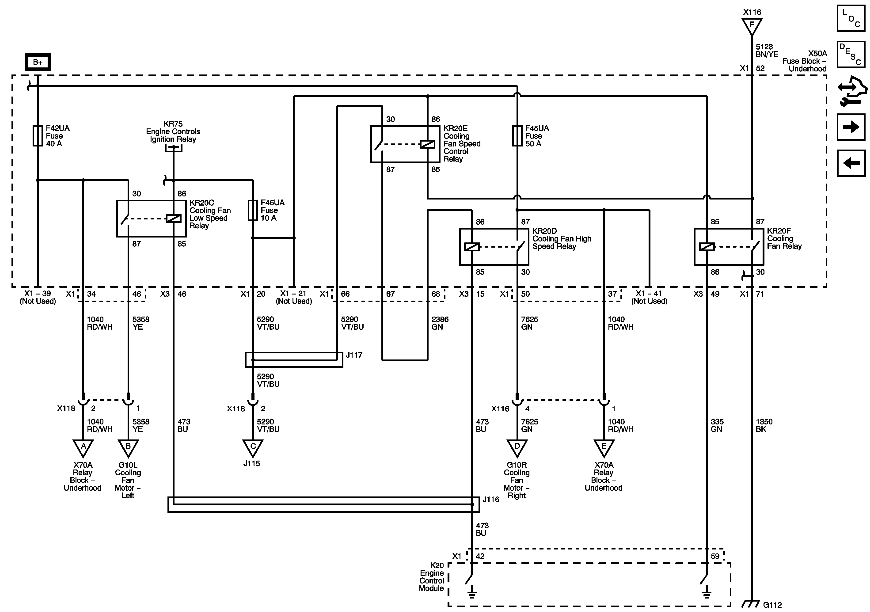

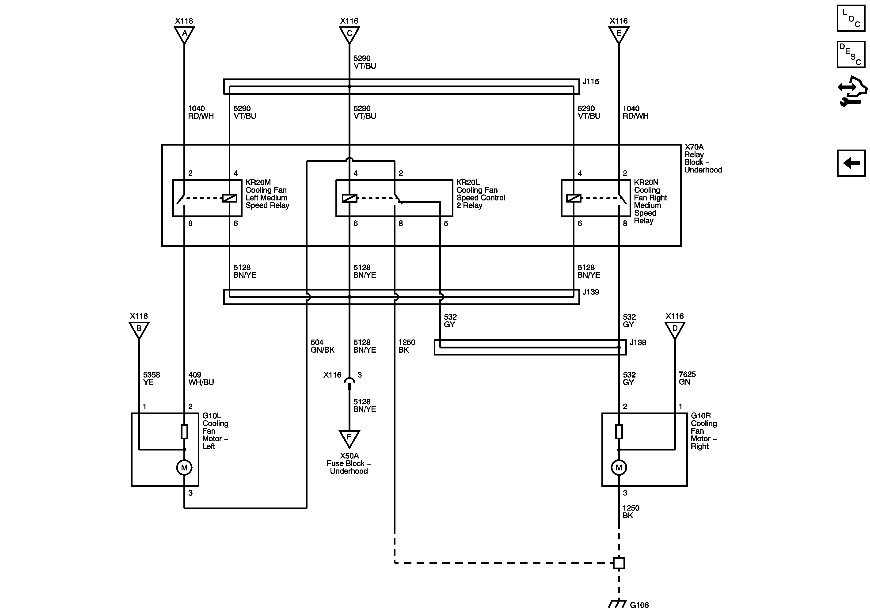

Power distribution (1)

Power distribution (10)

Power distribution (11)

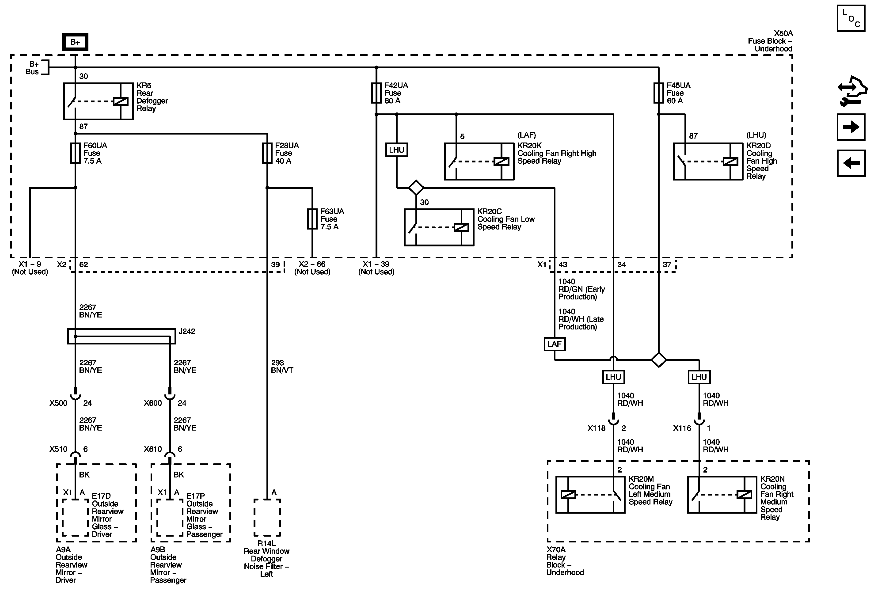

Power distribution (12)

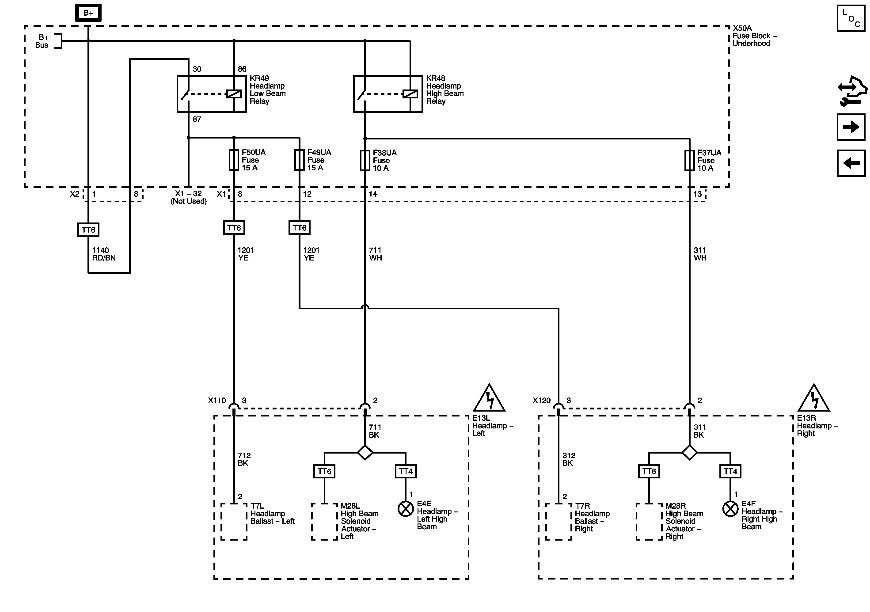

Power distribution (13)

Power distribution (14)

Power distribution (15)

Power distribution (16)

Power distribution (17)

Power distribution (2)

Power distribution (3)

Power distribution (4)

Power distribution (5)

Power distribution (6)

Power distribution (7)

Power distribution (8)

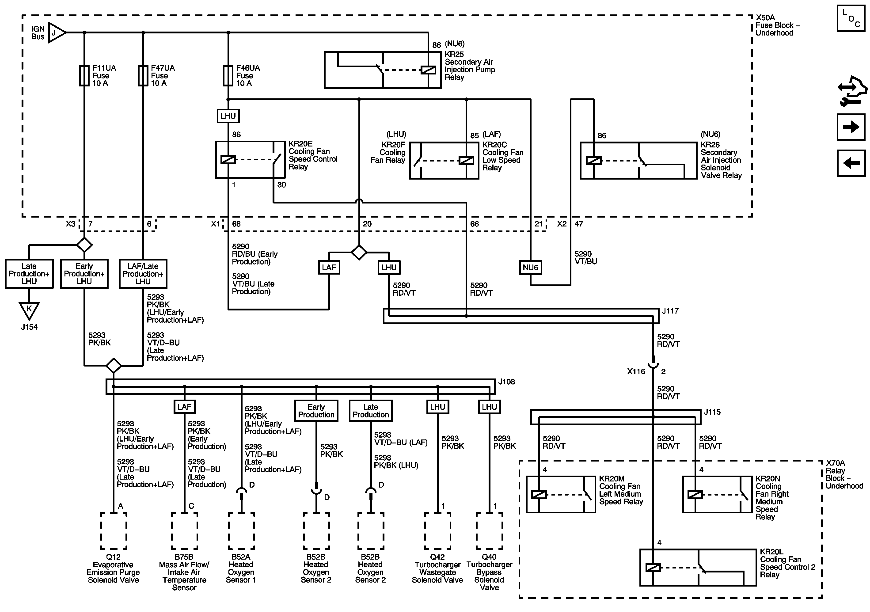

Power distribution (9)

Power moding (1)

Power moding (2)

Power moding (3)

Shift interlock

Starting charging (1)

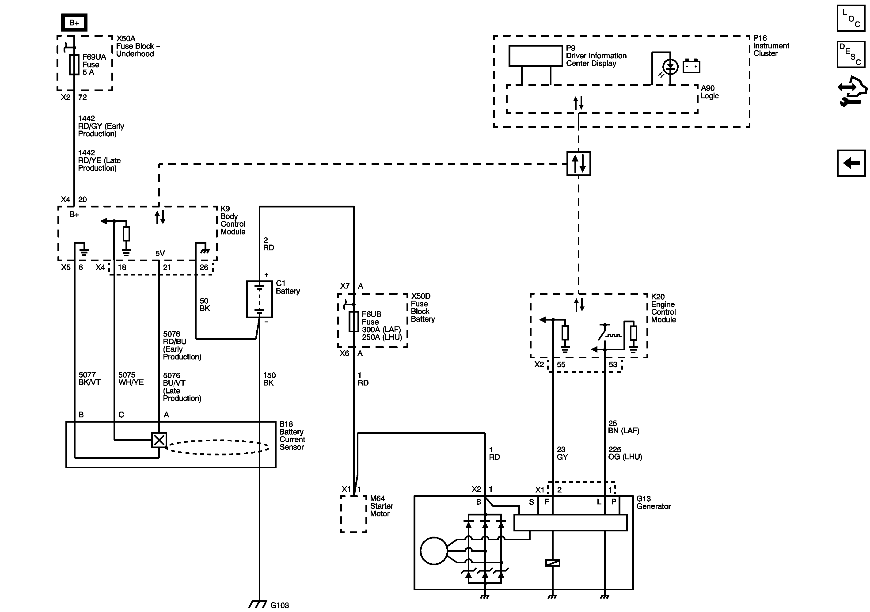

Starting charging (2)
