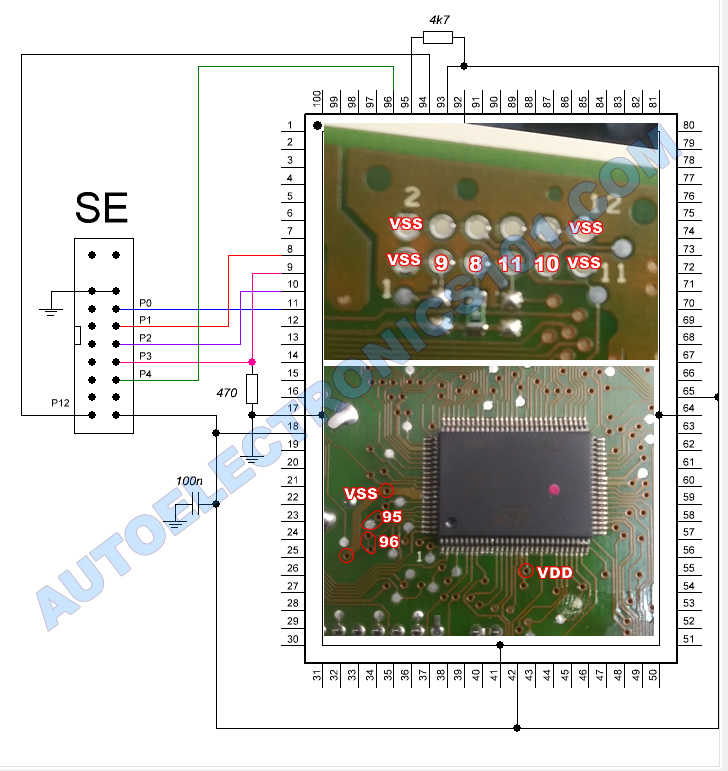

In-Circuit connections for reading & writing the ST92F120 mcu found inside the instrument cluster of the 2002-2003 Dodge Ram trucks.
Dodge Ram 02-03 DASH with ST92F120 in-circuit pinout using orange5 programmer
