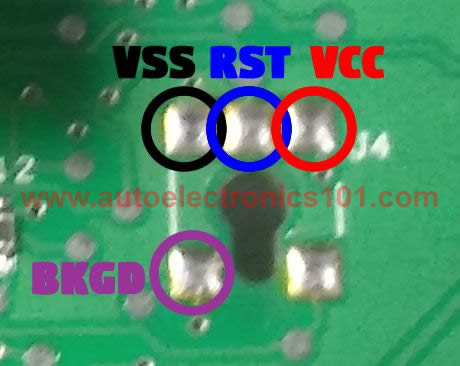

In-Circuit connections for reading & writing the 9S12 mcu found inside the instrument cluster of the 2005-2006 Dodge Ram trucks.
Near top right of MCU
Dodge Ram 05-06 DASH with 9S12 in-circuit BDM pinout
